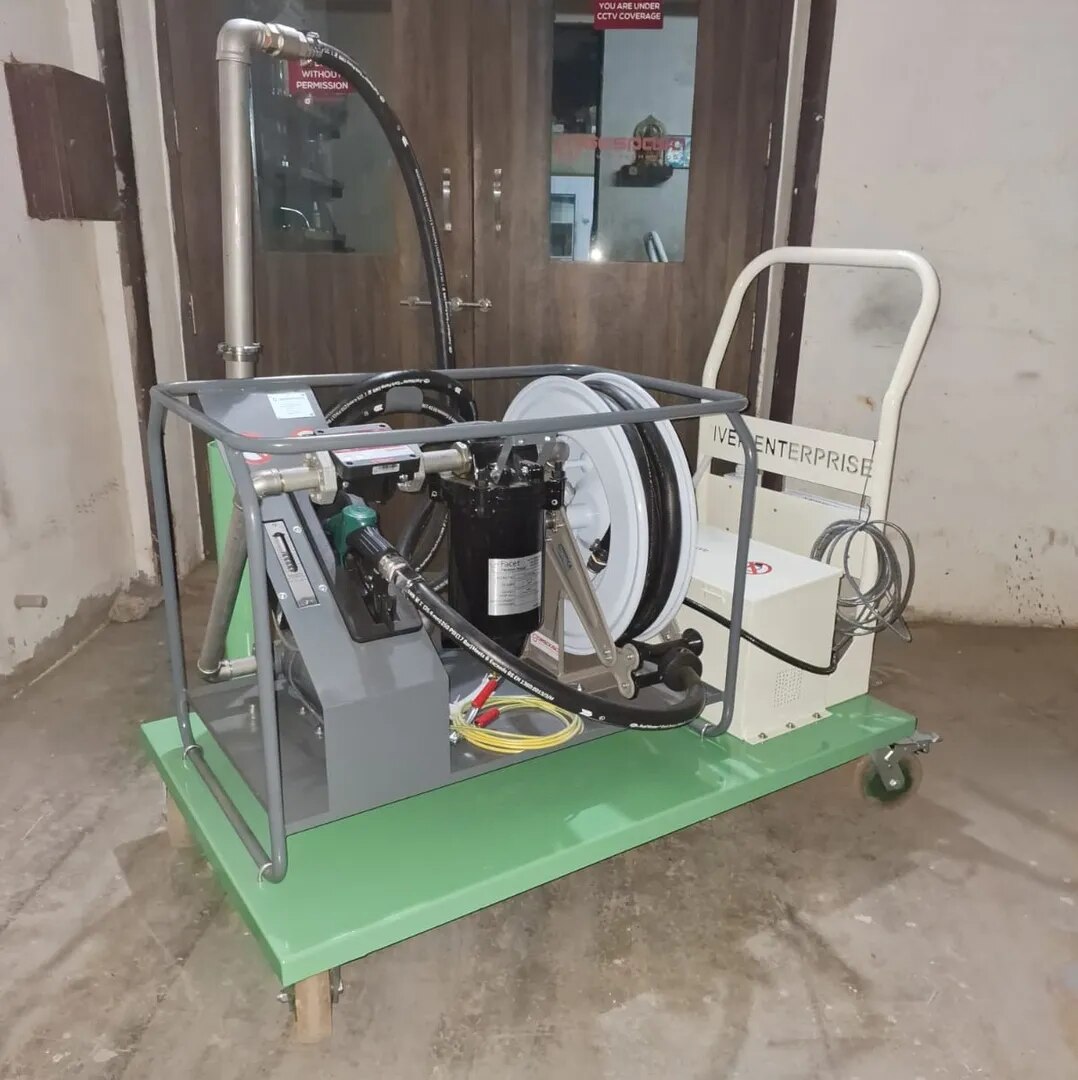

SUDAN PUMP AVIATION REFULLING SKID
Description
The GESPASA portable kit is a compact, independent and smooth equipment
that it is specially designed for the micro-filtered and dry fuel supply.
System flow: 50 To 70 l/min
Maximum pressure: 1.9 To 2 bar
It is composed of:
Self-suction pump for ATF (Gespasa AG-900 12VDC PUMP
Earth cable with clamp (ATEX pump)
Automatic nozzle for diesel or petrol
suction kit with check valve and 1” filter. Height 1.35m + 3 meter suction
hose.
Water absorbent filter with a filtering cartridge state warning or fuel
micro filter.
(Gespasa Facet Separator Filter 5 (micron) Temp:- (-) 10° C to (+) 50° C.
PLCF-110 inline suction (25 micron) SS mess filter.
Electronic meter with Viton joints.
(Gespasa Made Auto Rewind Complete Painted 1”X 10 Meter Hose-reel
With 1”X10 Meter Hose Pipe With Gespasa Made Aviation PA-80 1”
Auto shut off Nozzle With Nozzle Hanger.
Gespasa MGE-110 Electronic Flow Meter +/- 0.5% Accuracy. (-)10 to
(+)50° C.
Stainless steel connections.
COMPLETE TROLLY OF M/S METAL WITH FRONT WHEEL 360 DEGREE MOVING
AND BACK WITH ONE DIRECTION TOTAL 4 WHEEL WITH BREAK SYSTEM ON
WHEEL AND COMPLETE TROLLY WITH POWDER COATING.
12VDC Battery With Charger. 1 ½ hrs To 2 hrs Battery Back-up.
