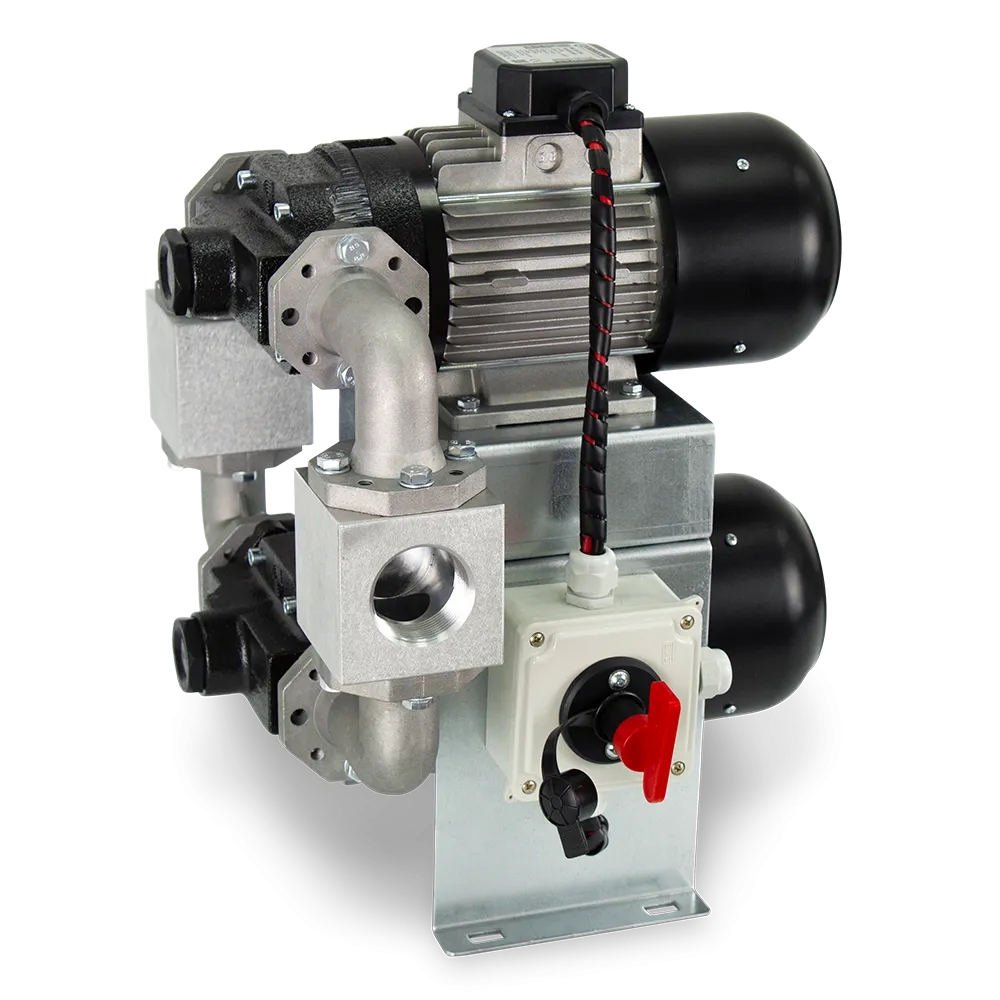

MONSTERPUMP-200 24 VDC
In stock
Description
Self-suction, self-priming pump with eccentric vanes
Composed of two pumps joined by a manifold (on demand)
Suitable for the transfer of diesel fuel, at high flow rates, in areas where a connection at 230 VAC or 110 VAC is not possible.
TECHNICAL FEATURES
Flow: 200 l/min
Consumption: 30-47 A 24 VDC
Pressure: 1.4 bar
Motor: 2x0.37 kW 24 VDC, dust protected, self-ventilated
Tropicalised
Continuous operation
IP-55 protection
1,500 rpm
Equipped with recirculation bypass
Suction: 2.7 m
Priming pipe suction: 5 m
Connection using M1 ½" threads (BSP). The manifold can be built according to specific needs on demand.
Junction box with key switch
Anti-rust treatmen
