high flow fuel filter for diesel,petrol and bio diesel.

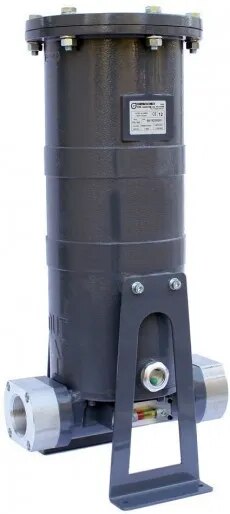

FG-300/15 · Water absorbent microfilter with aluminium housing · F2" 66192

It is suitable for particle microfiltration up to 15 µm (micron). The filtering paper is water absorbent. It is possible to drain through the manual drain valve placed in the microfilter bottom.

This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.

Differential manometer where you can see when the filter level is exceed.

The microfilter is supplied with the filtering element installed.

Technical features:

Filtration: 15 µm (micron)

Capacity: 15 litres in the housing interior

Flow: 300 l/min

Microfilter cover and body: Aluminium

Differential manometer

Inlet / Outlet Connections: F2" BSP or flange

Manual lower drain valve

Superior drain valve to eliminate the inner air of the filter

Installation: in the suction or delivery of the pumping kit

Maximum operating pressure: 6 bar

Maximum housing pressure: 10 bar
