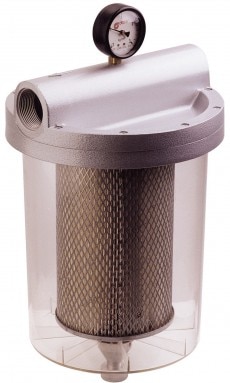

fuel filter and aviation fuel filter

These microlfilters are suitable for a trustworthy microfiltration, with the 5 µm (micron) water-repellent system (water separation) (only the FG-150 model).

Because of their transparent vessel, it is shown the amount of the inner liquid. The polluted fuel and the impurities, kept between the filtering cartridge and the transparent vessel, can be extracted through the manual lower valve.

EASY cleaning. It is only necessary to open the manual lower valve.

Technical data:

Capacity: 10 litres

Filtration:

diesel and petrol: 5 µm (micron) (with water separation at 93 %)

biodiesel: 25 µm (micron)

petrol · water absorbent: 15 µm (micron)

Max. flow: 160 l/min

Filter cover: aluminium casting

Transparent vessel: PA

Inlet / Outlet: F1 1/2" GAS (BSP)

Vacuum gauge: -1 +3 bar

Manual lower drain valve to empty impurities

Automatic degasifier

Filtering capacity: 1 million of litres (normal conditions)

Installation: on the pumping kit suction
