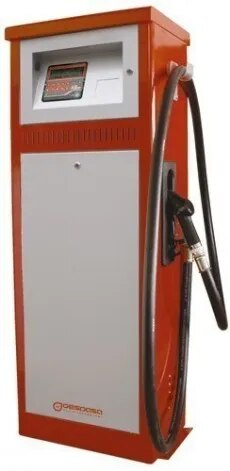

dispenser for fuel refuelling

Supply kits with ATEX components, special for installations of diesel, petrol kerosene supply.

This kit is composed of high accuracy hydraulic group and the GK-7 own consumption controller.

Composed of:

CHASSIS:

Made of steel

Special interior and exterior treatment against corrosion

Brilliant epoxid paint finish

Weatherproof

HYDRAULIC GROUP composed of:

Pump: Self-suction, eccentric with self-adjusting blades with gas separator. Flow: 70-80 l/min · Recirculation bypass valve, check valve, filter

Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: 0.2 % · Pulser of 2 channels of 100 pulses per litre · Mechanical totalizer

Motor:

1 kW 230/400 VAC · motor EExd with ATEX certificate · triphasic · IP-55 protection; or

0.90 kW 230 VAC · motor EExd with ATEX certificate · single-phase · IP-55 protection

CONTROLLER:

GK-7 own consumption

It is supplied with:

4 m delivery diesel hose Ø25 mm double layer, with 1" adapters in both ends

PA-80 automatic nozzle with rotary swivel
