diesel and bio diesel mixer dispenser

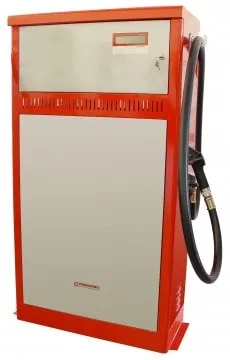

SMHE-90C · Biodiesel mixer supply kit 26770

Supply kit composed of two hydraulic pumps with piston meters.

It is designed for mixing diesel with oil to get mixed biodiesel.

It has an inlet of two independent liquids and supply of the mixed fluid.

Interior switch to supply 100% diesel or 100% oil.

The mixing selection to be supplied is made through a pulser and a display that there is in its interior.

You could supply any percentatge among 5 and 95 %.

Composed of:

CHASSIS

Made of steel

Special interior and exterior treatment against corrosion

Finish with epoxid brilliant paint

Weatherproof

HYDRAULIC GROUP composed of:

Pump: Self-suction, eccentric with self-adjusting blades with gas separator · Flow: 70-90 l/min · Recirculation bypass valve · Anti-return valve · Filter

Meter: Made of aluminium of 4 pistons with positive moving · Accuracy: 0.2 % · Pulser of 2 channels of 100 pulses per litre and mechanical totalizer

Motor: 2 motors of 1 kW 230/400 VAC · EExd with ATEX certificate, 3ph, with IP-55 protection

* Optionally it could be supplied with single-phase motors of 0.90 kW 230 VAC · EExd with ATEX certificate, with IP-55 protection

Mixing system

EL-1 ELECTRONIC DISPLAY

Automatic start and stop

Liquid crystal luminous Display of high visibility

Partial Indicator of 3 digits and 2 decimals or 4 digits and 1 decimal

Electronic totalizer of 5 digits

Visualization of the supply during 15 minutes if there is a supply system absence

It is supplied with:

4 m delivery diesel hose Ø25 mm double layer with adapters on both ends

PA-80 automatic nozzle with rotary swivel
